Composite material cutting machine AKF20 series Key Features: (1) Brand-new steel-frame structure & system for high-efficiency cutting
(2) Independent multi-zone vacuum table for stronger & flatter suction
(3) Multi-material cutting with smooth edges and high precision
(4) Excellent expandability for easy addition of other tools
(5) Cuts up to 60 mm thick, covering all mainstream materials
Product Introduction

The AKF20 series high-speed cutter is designed for batch production. It adopts a new control system and linear-guide transmission, offering high speed, high accuracy and excellent mechanical stability. The machine greatly improves overall efficiency and is highly expandable for future add-ons. It cuts fabrics, carpets, mats, rubber and more, serving industries such as apparel, automotive interiors, composite materials, gaskets, sports goods and upholstery. Depending on material and application, it is also called low-ply cutting table, single-ply cutter, automotive seat & floor-mat cutter, gasket cutter, composite cutter, automotive interior cutter, upholstery cutter, leather cutter, or luggage & footwear cutting machine.

Main Cutting Materials

Loop pile, sponge composites, XPE, EVA, fiber blankets, faux leather, genuine leather, fabrics, plush toys, shoe linings, prepregs, glass fiber, carbon fiber, rubber gaskets, graphite seals, etc.

Main Application Industries

Automotive interiors, composite materials, sealing gaskets, sports goods, upholstery, apparel & bags, footwear & leather goods.

Technical Parameters

Model

AKF202516

AKF201713

AKF201310

Effective Cutting Area

2500 × 1600 mm

1700 × 1300 mm

1300 × 1000 mm

Configuration

Oscillating knife, pen, drag knife, foam knife, etc.

Maximum Speed

1800 mm/s

Minimum Cutting Circle Radius

1 mm

Accuracy

≤0.1 mm

Maximum Cutting Thickness

60 mm

Driver

Servo

Voltage

220 V ±10 % 50 Hz

Vacuum Pump Power

5.5 kW / 7.5 kW

Data Format

HPGL, DXF, PDF

Data Interface

Parallel, serial, USB

Options

AOKE CCD vision positioning system

Footprint (L × W × H)

3780 × 2580 × 1280 mm

2980 × 2280 × 1280 mm

2580 × 1980 × 1280 mm

Remarks

Other sizes available on request

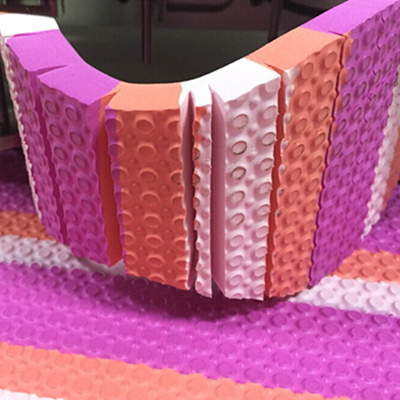

Cutting Samples
  • Microfiber

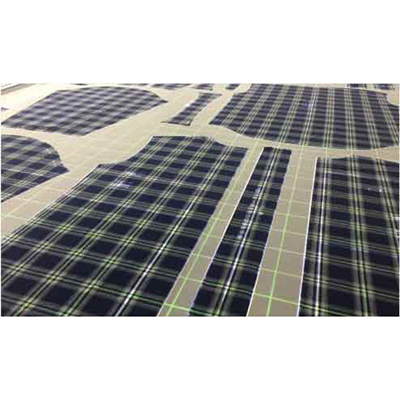

  • Fabric

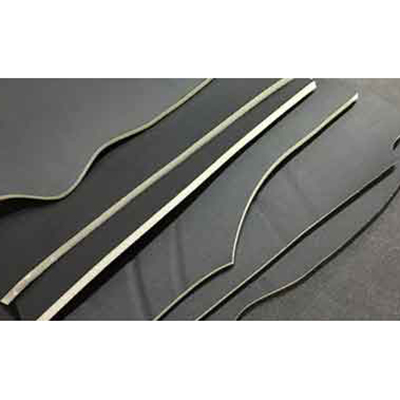

  • Leather
  • PU

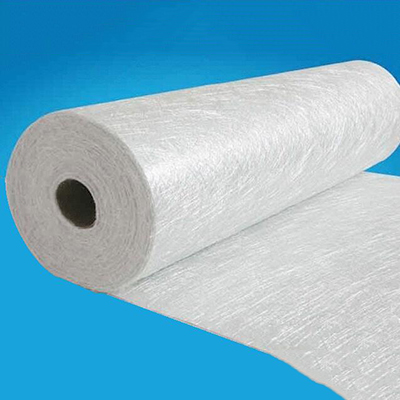

  • Glass Fiber

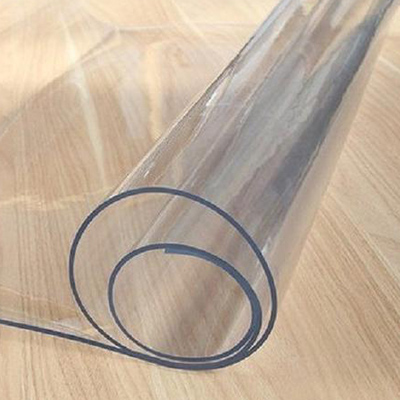

  • Soft PVC
